How to install Vertical Blinds for Recess Fit?

Get Prepared

Vertical blinds are an easy-to-operate and versatile product that provide legendary vertical streams of light in your space when opened and privacy at night. Not only that, but this classic fixture is a breeze to install

Have a read of our helpful installation guide so you can confidently install your new roller blinds.

What you need:

ü  1 to 2 people

ü  A tape measure

ü  A pen or pencil

ü  A Drill, if you don't have one, call your handyman Bhaiya

ü  Step Ladder if the window is high

Time you need:

ü  5-10 mins

Fit Type: Three types

ü  Recess Fit – Inside Frame

ü  Face Fit – Outside Frame

ü  Frameless – No Frame

ü Recess Fit – Inside Frame

Installing your Vertical blinds within the recess of your window

You'll be installing the Vertical blind brackets inside your window frame. The brackets have multiple fixing points; however, to achieve maximum coverage, ensure to install the screws through the bracket into the top of your recess.

It only takes a few minutes to install your new vertical blinds, so let's get started.

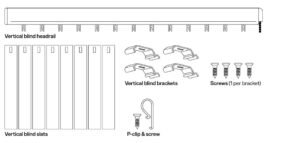

What's in the box?

Let's unpack everything! Lay it on the floor.

Open up the cardboard box(es) you've received. Open the outer layer of plastic surrounding your vertical blind(s). You'll notice some bracket componentry, beaded chains, end caps and a bag of screws. There'll be one bag with all the screws for each of the blinds you've ordered - there are 4 screws per roller blind (2 per bracket).

*NOTE: Because your roller blind is fully customised, the components in your order may differ from those pictured here. Rest assured, we are always there to help and support you.

Mark up

Get a pencil ready

You're going to be marking up where your brackets will be installed.

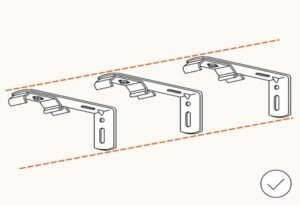

Line up your brackets

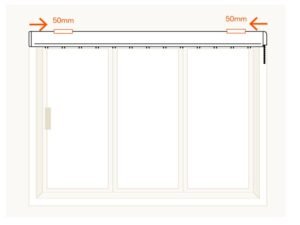

Before you install your brackets, it's important that your outermost brackets are positioned at least 50mm from the end of your blind.

Line these up now before you proceed. If you have a pelmet, mark up your brackets

Mark up your brackets

Gather your brackets; the number of brackets may differ depending on the length of your blind.

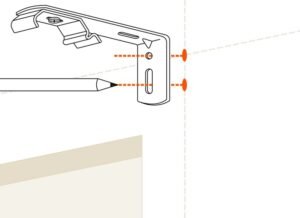

Lift each bracket to the top of your recess with each bracket flush with the top of your recess. Mark a hole through the top bracket as shown in the image.

Make sure the back of the bracket is at least 10mm from the window and any obstructions below.

Install your brackets

Let's get drilling - Now you'll be drilling pilot holes for your brackets and then installing them with the supplied screws.

Don’t have a drill at home? No worries!

You can always call your trusted local carpenter, electrician, or plumber — they usually carry a drill and can help you install the brackets in no time. It’s a small job they’ll wrap up quickly and affordably.

Now, let’s get those brackets up!

Once the drill is ready, start by making pilot holes where your brackets will go. Then, secure them firmly using the supplied screws.

Drill your pilot holes

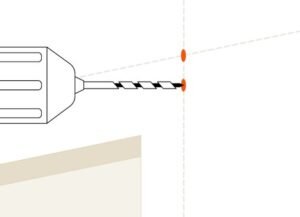

Pop the 3mm drill bit into your drill and pre-drill holes for each of the vertical blind brackets where you've marked in the previous step. Repeat for all brackets.

Install your brackets

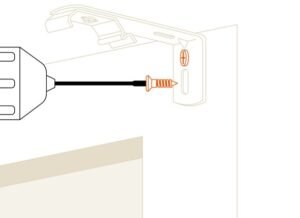

Install your brackets by holding each up and drilling a screw through the pilot hole. Repeat this process for all remaining brackets.

If you have a pelmet, install the pelmet brackets

Optional (if you have a pelmet) - Install the pelmet brackets with the supplied screws.

Are you ready to install your vertical blinds? Told you, it was an easy-peasy installation!

Click in your vertical blind, it's that easy! We're nearly there. Just simply click your vertical blind into your already installed brackets.

Line up your blind

Lift up your vertical blind at an angle and line up the front lip with the prongs on the front of each bracket. Then hook the prongs into the underside of the lip.

Click in your blind

Keeping the front lip hooked on, turn your blind toward the window. Once your blind is in line with the top of the recess, gently apply force until you hear a satisfying 'Click'.

This means your blind is now installed and secure. Great Job!

Clip on your blind slats

Now for the fun part - This is where you will install the individual lengths of material that make up your blind.

Clip it good

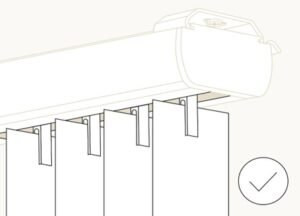

Holding the top of the slat, line it up with the a peg protruding from the headrail. Gently push the slat into the peg, where it will clip into place

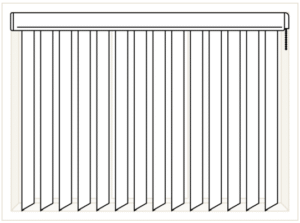

Finish it off. Repeat the previous step for each of your remaining slats. Once that's done, your blinds will be fully installed and looking amazing. Great Job! You have done it! Congratulations.
